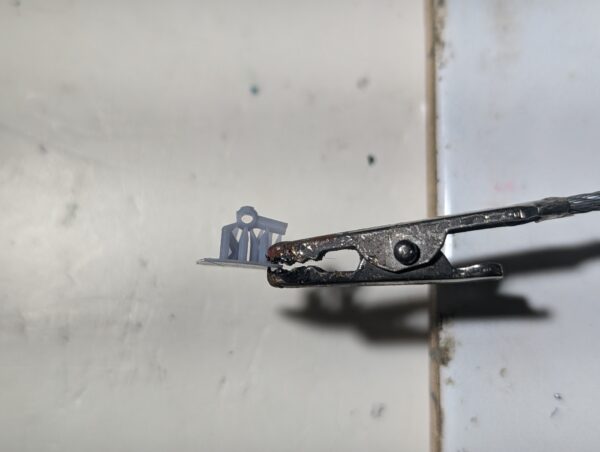

HO Scale Adlake Style Locomotive Marker Lamps – without LED – angled pin – 6 per pack

Description

HO Scale Adlake style marker lamps.   These are 3D printed using a custom formulation of AnyCubic Tough Resin and Standard Resin.    These marker lamps can be purchased with or without the 0402 size warm white LEDs.   There are two mounting pins styles available:  Straight and 20 degree bent.  This listing is for the angled pin version.  The image with the LED is for illustrative purposes only.

The straight pin is great for tender installations and the 20 degree bent is designed for smokebox mounting.    All have a .3 mm hole through the pin to provide a wire routing conduit.

These are great for DCC installs as the 3D resin provides a great insulator for the exposed connections of the LED leads and protects the wiring from shorting and/or chafing on brass locomotives installs.

LED purchased versions will come with preinstalled LEDs, wired and tested.

Installation notes:   After painting, use 2 part epoxy or Canopy glue to form lenses for each opening, tint the dried lenses with Vallejo Transparent paints to your desire.

Pricing is for one package of 6 markers without LEDs.
